//a water collecting tower

Below in the center, a self-sustained drinking will contain fountain, the clean water is harvested from dew and fog through the collecting cone on top. The Cone is made out of natural fabrics with a hydrophilic and hydrophobic qualities that attracts water drops and sheds it down the vessel, and then drains through the bamboo pipes to an underground tank from biodegradable fibre. The water surface is surrounded by natural stone blocks for seating in order to provide a welcoming oasis with fresh water. However, it serves not only as a e drinking fountain, but also as a cooling surface for the surrounding air in hot summer days, where the whole structure will act as a wind tower that cools the space. In cold winter days, the empty water vessel can act as a fire pit for people to huddle around.

/The word 'Sabil' refers to the rain falling from the sky before it reaches the land, in Islamic architecture it's the public place for drinking or a fountain dedicated to watering passers-by. We created an oasis that can be placed in various contexts, functions and landscapes.

/ A water collecting tower from rain and due

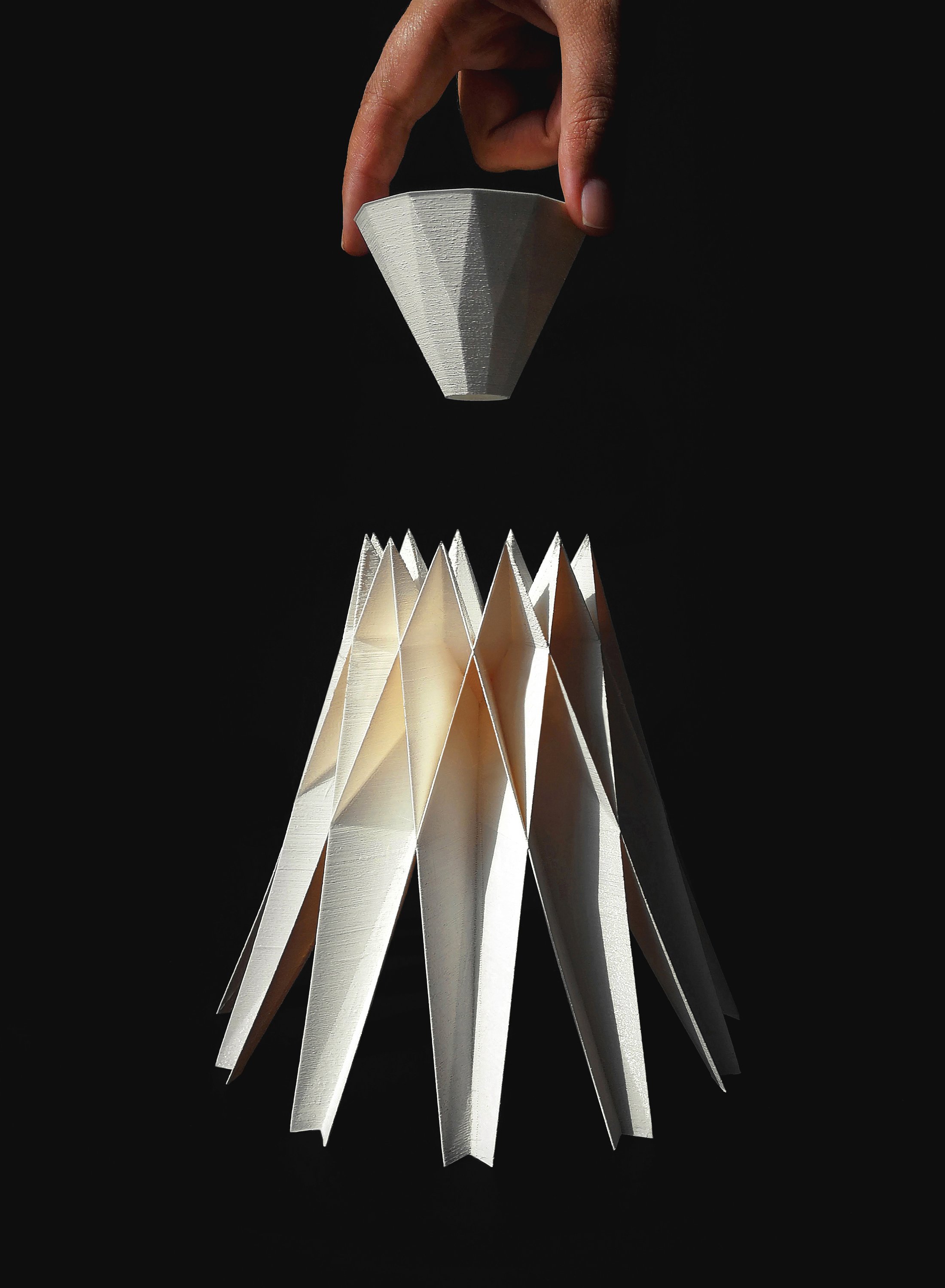

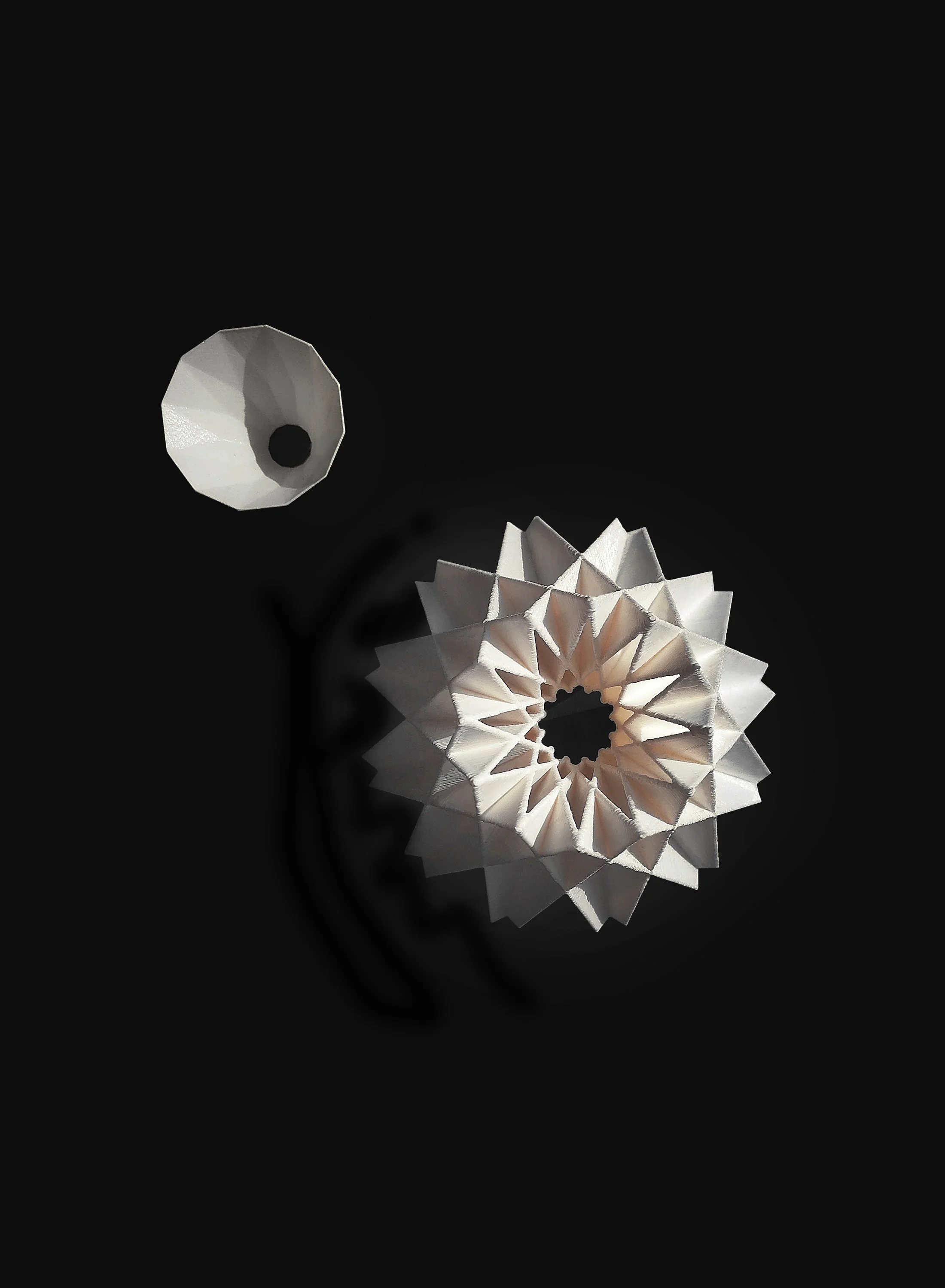

/the upper cone which sits in the crown of the structure, like a vessel
/A collecting cone made from fabric with a combination of hydrophilic and hydrophobic qualities would harvest fresh drinking water from rain and fog, draining down the hollow steel pipes to an underground holding tank.

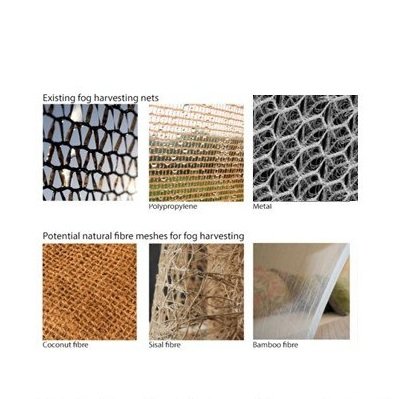

/The Sabil will provide a total area of 23sqm of water collecting surface material. Fibers like Jute or Coconut fiber shall be used for the cone material on top.
/the clean water is harvested from dew and fog through the collecting cone on top. The Cone is made out of natural fabrics with a hydrophilic and hydrophobic qualities that attracts water drops and sheds it down the vessel, and then drains through the bamboo pipes to an underground tank from biodegradable fibre.

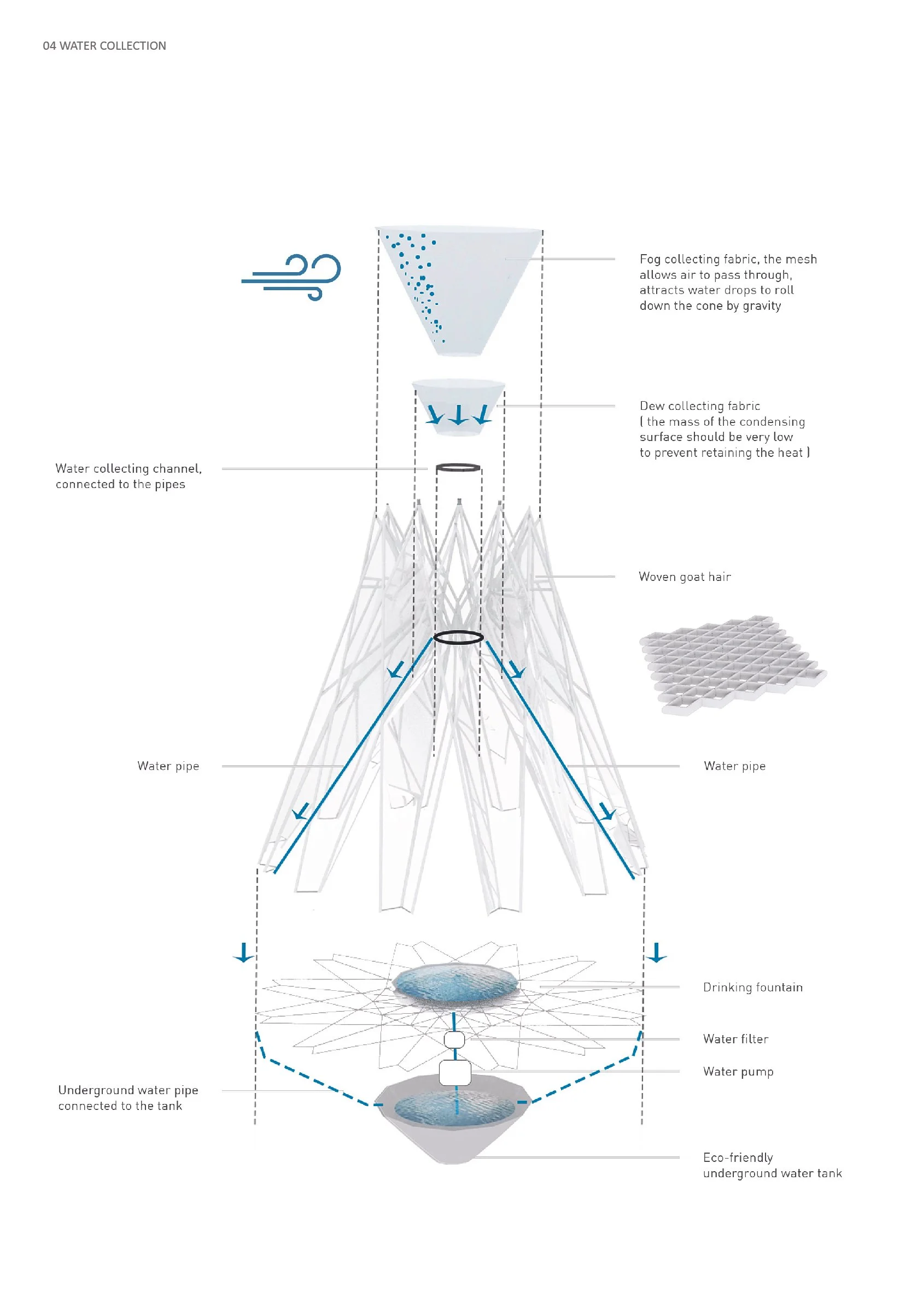

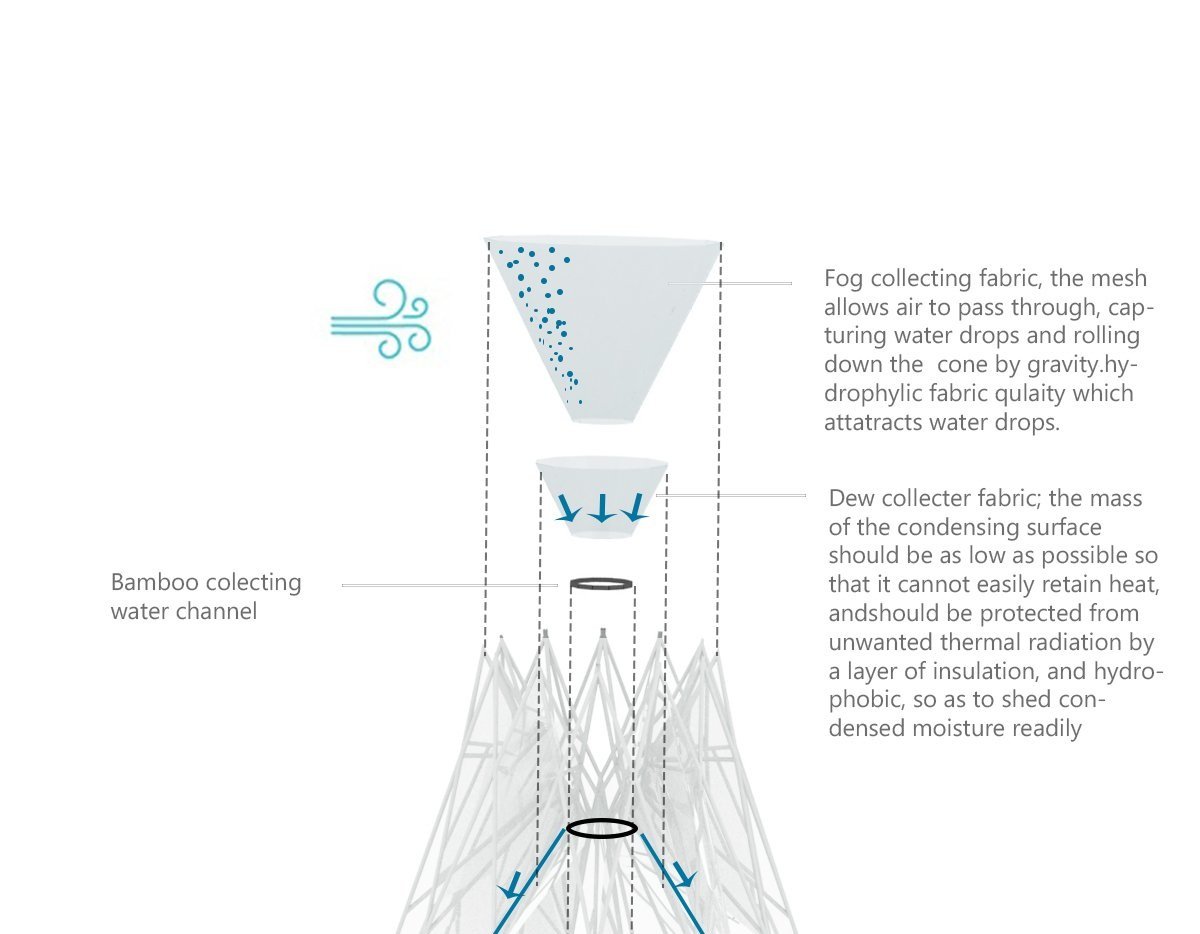

/The water collecting mechanism of the cone
/right under the opening to the sky, is a self-sustained drinking well with a fountain,

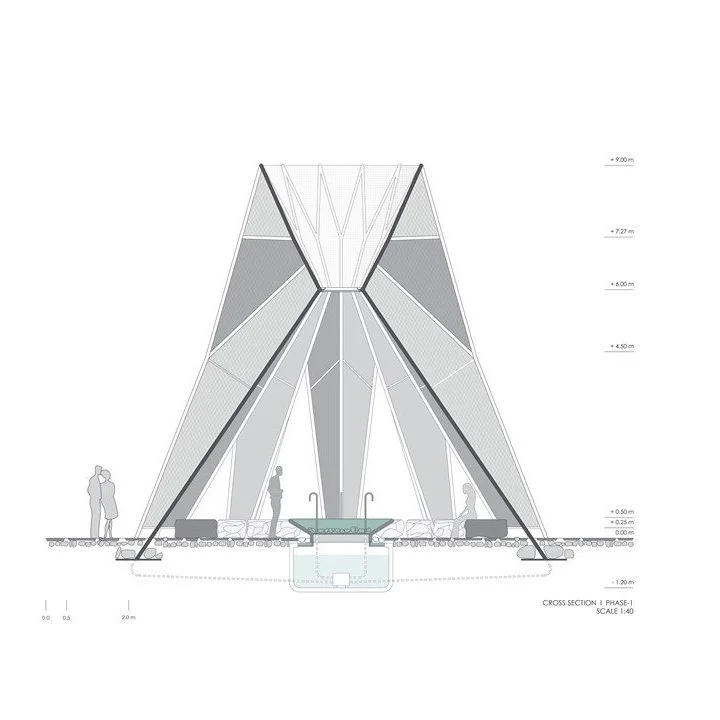

/A section showing the vessel, the fountain and the well underneath

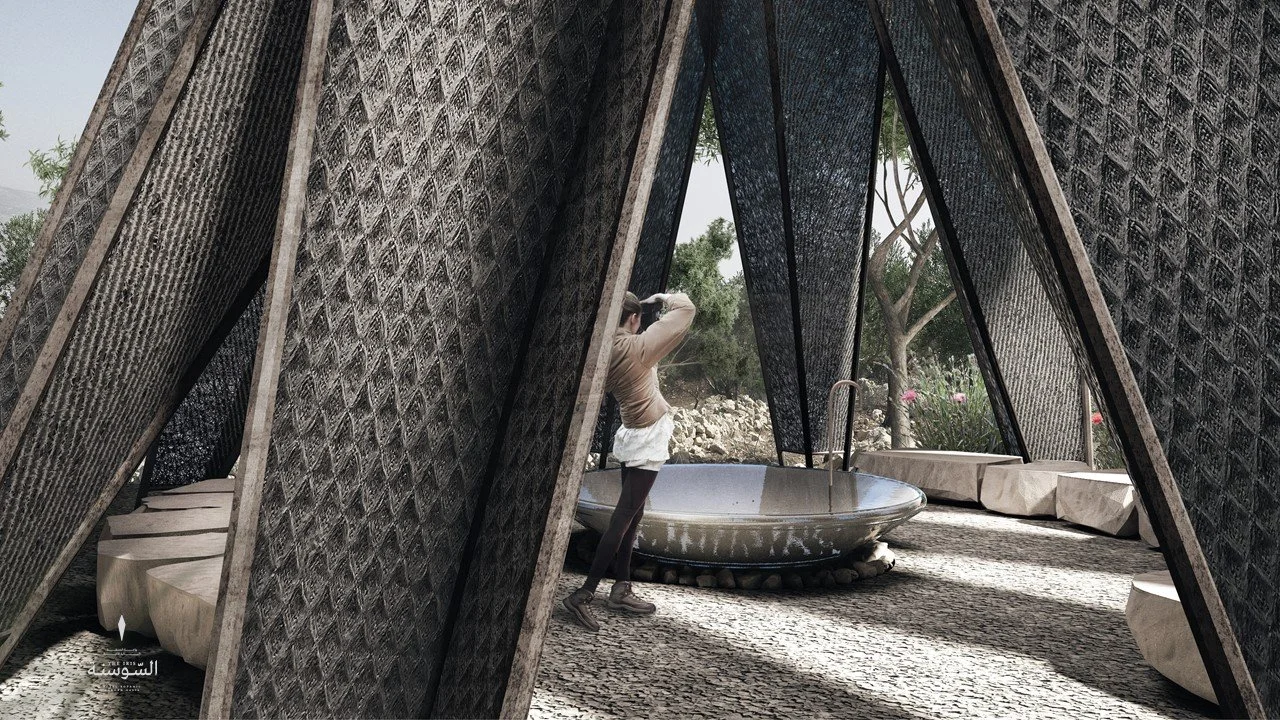

/The water surface is surrounded by natural stone blocks for seating in order to provide a welcoming oasis with fresh water. However, it serves not only as a e drinking fountain, but also as a cooling surface for the surrounding air in hot summer days, where the whole structure will act as a wind tower that cools the space
/ In cold winter days, the empty water vessel can act as a fire pit for people to huddle around.
